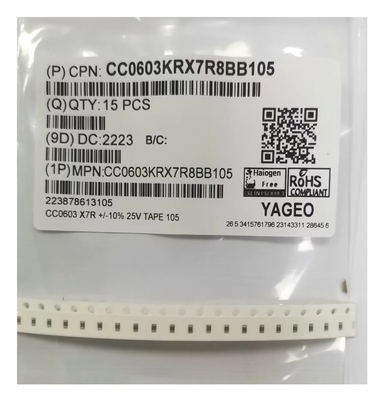

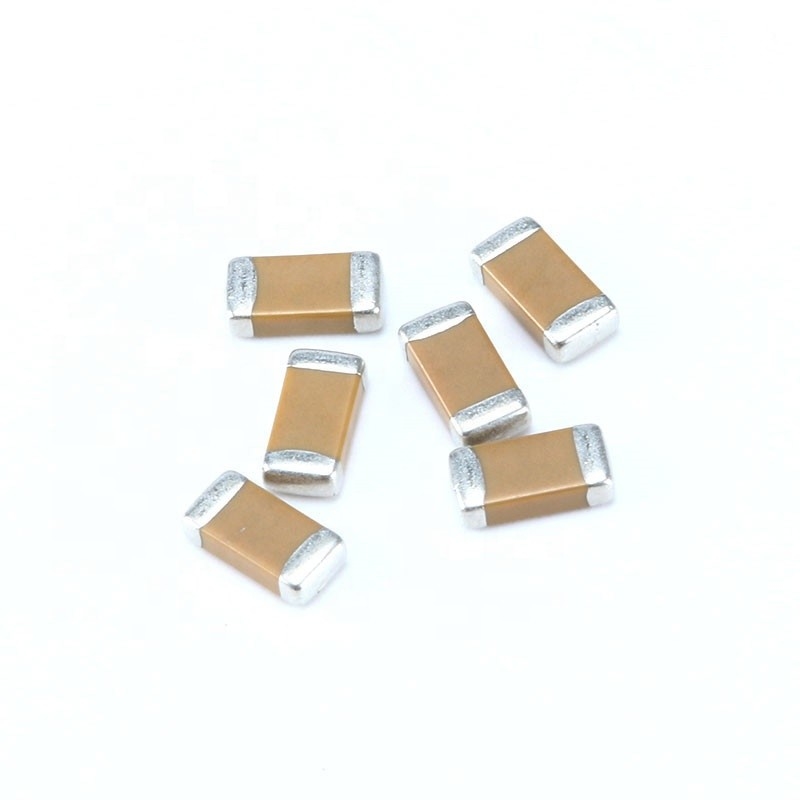

Datos del producto:
|
| Tipo: | Condensadores de cerámica | Capacitancia: | 1.0uF |
|---|---|---|---|
| Voltaje clasificado: | 25Vdc | Longitud: | 1,6 ±0.10 milímetro |
| tipo del paquete: | X7R | Tolerancia de la capacitancia: | el ±10% |
| Meature de capa: | 0603 (el 1608M) | característica: | consumo, circuito de alta frecuencia |
| USO: | filtro que desempareja puente | Ancho: | 0,8 ±0.10 milímetro |
| Resaltar: | condensadores de cerámica de múltiples capas 1.0uF,Condensadores de cerámica de múltiples capas de SMD,condensadores de cerámica de 25V SMD |
||
| Descripción de la especificación | |||||
|
Descripción |
TC código |
Serie |
Gama de la capacitancia |
Gama del voltaje |
Tamaño |
|
Discreto |
NP0 |
Fines generales | 0,22 PF a 33 N-F | 16 V a 25 V | 0201, 0402, 0603, 0805, 1206, 1210 |
|
Fines generales |
0,22 PF a 22 N-F |
50 V |
0201, 0402, 0603, 0805, 1206, 1210, 1812 |
||
| Voltaje medio | 0,47 PF a 22 N-F | 100 V a 630 V | 0603, 0805, 1206, 1210, 1808, 1812 | ||
|
Alto voltaje |
0,47 PF a 2,7 N-F |
1 kilovoltio, 2 kilovoltios, 3 kilovoltios |
1206, 1210, 1808, 1812 |
||
| De alta frecuencia | 0,22 PF a 8,2 PF | 50 V | 0402, 0603, 0805 | ||
| Microonda | 0,47 PF a 47 PF | 50 V | 0603, 0805, 1206 | ||
|
X7R |
Capacitancia de fines generales y alta |
100 PF al µF 22 |
6,3 V a 50 V |
0201, 0402, 0603, 0805, 1206, 1210, 1812 |
|
| Voltaje medio | 100 PF a 1 µF | 100 V a 630 V | 0603, 0805, 1206, 1210, 1808, 1812 | ||
| Alto voltaje | 100 PF a 33 N-F | 1 kilovoltio a 3 kilovoltios | 1206, 1210, 1808, 1812 | ||
| De baja inductancia | 10 N-F a 220 N-F | 10 V a 50 V | 0306, 0508, 0612 | ||
|
X5R |
Capacitancia de fines generales y alta |
10 N-F al µF 100 |
6,3 V a 50 V |
0201, 0402, 0603, 0805, 1206, 1210, 1812 |
|
| Y5V | Capacitancia de fines generales y alta | 4,7 N-F al µF 47 | 6,3 V a 50 V | 0201, 0402, 0603, 0805, 1206, 1210 | |
|
Certificación de seguridad producto |
NP0 | Tipo de alto voltaje del SC | 2,0 PF a 470 PF | X1/Y2, X2/Y3 | 1808, 1812 |
| X7R | Tipo de alto voltaje del SC | 150 PF a 1,5 N-F | X1/Y2, X2/Y3 | 1808, 1812 | |
|
C-órdenes |
NP0 | órdenes 4C | 10 PF a 470 PF | 50 V | 0508, 0612 |
| X7R | órdenes 4C | 180 PF a 100 N-F | 16 V a 50 V | 0508, 0612 | |
| Y5V | órdenes 4C | 10 N-F a 100 N-F | 25 V | 0612 | |
| Dimensiones del caso | |||||||
| Condensadores discretos - fines generales | |||||||
|
|
Designación del tamaño del caso | Dimensiones en el milímetro | |||||
| Pulgada-basado | Métrico | L1 | W | L2 / Minuto L3 | L2 / L3 máximo | Minuto L4 | |
| 0201 | los 0603M | 0,6 ±0.03 | 0,3 ±0.03 | 0,10 | 0,20 | 0,20 | |
| 0402 | el 1005M | 1,0 ±0.05 | 0,5 ±0.05 | 0,15 | 0,30 | 0,40 | |
| 0603 | el 1608M | 1,6 ±0.10 | 0,8 ±0.10 | 0,20 | 0,60 | 0,40 | |
|
0805 |
los 2012M |
2,0 ±0.10 (1) | 1,25 ±0.10 (1) | 0,25 | 0,75 | 0,55 | |
| 2,0 ±0.20 (2) | 1,25 ±0.20 (2) | 0,25 | 0,75 | 0,55 | |||
|
1206 |
los 3216M |
3,2 ±0.15 (1) | 1,6 ±0.15 (1) | 0,25 | 0,75 | 1,40 | |
| 3,2 ±0.30 (2) | 1,6 ±0.20 (2) | 0,25 | 0,75 | 1,40 | |||
|
1210 |
los 3225M |
3,2 ±0.20 (1) | 2,5 ±0.20 (1) | 0,25 | 0,75 | 1,40 | |
| 3,2 ±0.40 (2) | 2,5 ±0.30 (2) | 0,25 | 0,75 | 1,40 | |||
| 1808 | los 4520M | 4,5 ±0.40 | 2,0 ±0.30 | 0,25 | 0,75 | 2,20 | |
|
1812 |
los 4532M |
4,5 ±0.20 (1) | 3,2 ±0.20 (1) | 0,25 | 0,75 | 2,20 | |
| 4,5 ±0.40 (2) | 3,2 ±0.40 (2) | 0,25 | 0,75 | 2,20 | |||
| Clases del grueso y cantidades que embalan | ||||||||
|
Descripción |
Código del tamaño |
Clasificación del grueso (milímetros) | Cantidad por carrete |
Cantidad por caso a granel |
||||
|
Anchura de la cinta |
180 milímetros/7" | 330 milímetros/13" | ||||||
| Papel | Ampolla | Papel | Ampolla | |||||
|
Condensadores discretos |
0201 | 0,3 ±0.03 |
8 milímetros |
15 000 | --- | 50 000 | --- | --- |
| 0402 | 0,5 ±0.05 | 10 000 | --- | 50 000 | --- | 50 000 | ||
| 0603 | 0,8 ±0.1 | 4 000 | --- | 15 000 | --- | 15 000 | ||
|
0805 |
0,6 ±0.1 | 4 000 | --- | 20 000 | --- | 10 000 | ||
| 0,85 ±0.1 | 4 000 | --- | 15 000 | --- | 8 000 | |||
| 1,25 ±0.2 | --- | 3 000 | --- | 10 000 | 5 000 | |||
|
1206 |
0,6 ±0.1 | 4 000 | --- | 20 000 | --- | --- | ||
| 0,85 ±0.1 | 4 000 | --- | 15 000 | --- | --- | |||
| 1.00 / 1,15 ±0.1 | --- | 3 000 | --- | 10 000 | --- | |||
| 1,25 ±0.2 | --- | 3 000 | --- | 10 000 | --- | |||
| 1,6 ±0.15 | --- | 2 500 | --- | 10 000 | --- | |||
| 1,6 ±0.2 | --- | 2 000 | --- | 10 000 | --- | |||
|
1210 |
0.6 / 0,7 ±0.1 | --- | 4 000 | --- | 15 000 | --- | ||
| 0,85 ±0.1 | --- | 4 000 | --- | 10 000 | --- | |||
| 1,0 ±0.15 | --- | 3 000 | --- | 10 000 | --- | |||
| 1,15 ±0.1 | --- | 3 000 | --- | 10 000 | --- | |||
| 1,15 ±0.15 | --- | 3 000 | --- | 10 000 | --- | |||
| 1,25 ±0.2 | --- | 3 000 | --- | --- | --- | |||
| 1,5 ±0.1 | --- | 2 000 | --- | --- | --- | |||
| 1.6 / 1,9 ±0.2 | --- | 2 000 | --- | --- | --- | |||
| 2,0 ±0.2 | --- | 2 000/1 000 | --- | --- | --- | |||
| 2,5 ±0.2 | --- | 1 000/500 | --- | --- | --- | |||
|
1808 |
1,15 ±0.15 |
12 milímetros |
--- | 3 000 | --- | --- | --- | |
| 1,25 ±0.2 | --- | 3 000 | --- | --- | --- | |||
| 1,35 ±0.15 | --- | 2 000 | --- | --- | --- | |||
| 1,5 ±0.1 | --- | 2 000 | --- | --- | --- | |||
| 1,6 ±0.2 | --- | 2 000 | --- | 8 000 | --- | |||
| 2,0 ±0.2 | --- | 2 000 | --- | --- | --- | |||
|
1812 |
0.6 / 0,85 ±0.1 | --- | 2 000 | --- | --- | --- | ||
| 1,15 ±0.1 | --- | 1 000 | --- | --- | --- | |||
| 1,15 ±0.15 | --- | 1 000 | --- | --- | --- | |||
| 1,25 ±0.2 | --- | 1 000 | --- | --- | --- | |||
| 1,35 ±0.15 | --- | 1 000 | --- | --- | --- | |||
| 1,5 ±0.1 | --- | 1 000 | --- | --- | --- | |||
| 1,6 ±0.2 | --- | 1 000 | --- | --- | --- | |||
| 2,0 ±0.2 | --- | 1 000 | --- | --- | --- | |||
|
De baja inductancia |
0306 | 0,5 ±0.1 |
8 milímetros |
4 000 | --- | 15 000 | --- | --- |
| 0508 | 0,85 ±0.1 | 4 000 | --- | 15 000 | --- | --- | ||
| 0612 | 0,85 ±0.1 | 4 000 | --- | 15 000 | --- | --- | ||
|
Órdenes |
0508 | 0,6 ±0.1 | 4 000 | --- | --- | --- | --- | |
| 0612 | 0,8 ±0.1 | 4 000 | --- | --- | --- | --- | ||
